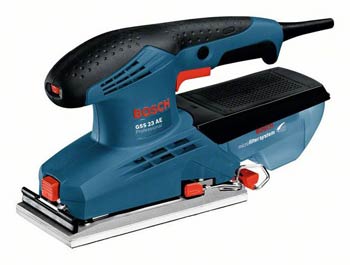

The orbital sanders from Bosch stand for the highest surface quality. Outstanding running smoothness and integrated dust extraction guarantee best work results.

IMPORTANT DATA
• Rated power input - 190 W
• Sanding plate, width - 92 mm
• Sanding plate, length - 182 mm

Part no. 0601070760 (110V version) 0601070770 (240V version)

Every type of sanding sheet sits perfectly with Easy-Fit
• Easy-Fit system with automatic paper tensioning for a perfect hold of roll paper or Velcro-backed paper
• A perfect paper fit ensures maximum surface quality and optimum interaction with micro-filter for dust-free working
• Control electronics for material-specific working (the only one in this price class)
• Low-vibration for fatigue-free working
• Long lifetime due to sealed ball bearing and the high-quality white sanding plate
• 190 watts for high material removal rate

COMPLETE WITH
• 2 sheets of sanding paper
• Hole punch - 2 608 190 016
• Microfilter box

TECHNICAL DATA
• Rated power input - 190 W
• No-load speed - 7.000 – 12.000 rpm
• No-load orbital stroke rate - 14.000 – 24.000 opm
• Oscillating circuit diameter - 2,0 mm
• Weight - 1,7 kg
Sanding surface
• Sanding plate, width - 92 mm
• Sanding plate, length - 182 mm
• Sanding sheet for clamping, width - 93 mm
• Sanding sheet for clamping, length - 230 mm
• Sanding sheet with Velcro-type fastening, width - 93 mm
• Sanding sheet with Velcro-type fastening, length - 185 mm

FUNCTIONS
• Velcro-type fastening
• Dust extraction
• Electronic

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
• Vibration emission value ah - 4.5 m/sē
• Uncertainty K - 1.5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 80 dB(A); Sound power level 91 dB(A). Uncertainty K= 3 dB.


PLEASE STIPULATE ON ORDER IF YOU REQUIRE 240V OR 110V MACHINE
