Always on the safe side: with the professional detectors from Bosch you will find magnetic and non-magnetic metals, power cables, wooden substructures or even plastic pipes with maximum reliability and safety.

IMPORTANT DATA
• Max. detection depth - 150 mm
• Accuracy - ± 5 mm
• Weight, approx. - 0,7 kg

Part no. 0601010008

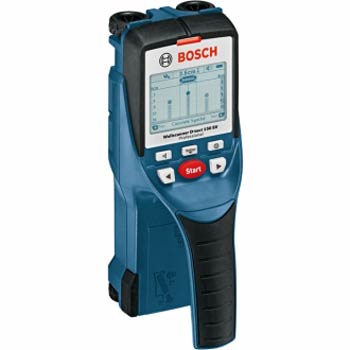

The specialist for finding objects in difficult conditions
• Unique: reliable detection of objects in damp concrete
• Millimetre-accurate detection of ferrous/non-ferrous metals, live cables, wooden studs and plastic pipes
• Digital display of material properties
• The actual object depth is displayed, making it easy to determine the actual level of concrete cover
• The Signal View/SV displays objects that are very close together even more precisely
• The specialist for finding reinforcements with three operating modes for concrete
• Ruler View: measuring distances between objects, millimetre-accurate marking on wall
• Requires no calibration

COMPLETE WITH
• 4 x 1.5 V batteries
• Protective case

TECHNICAL DATA
• Detectable materials - Plastic pipes, ferrous metals, non-ferrous metals, wooden substructures, live cables
• Max. detection depth - 150 mm
• Accuracy - ± 5 mm
• Automatic deactivation facility, approx. - 5 min
• Power supply - 4 x 1.5 V LR6 (AA)
• Weight, approx. - 0,7 kg
• Length - 220 mm
• Width - 97 mm
• Height - 120 mm
• Dust and splash guard - IP 54
