IMPORTANT DATA
• Saw blade diameter - 254 mm
• Mitre setting - 52 ° L / 60 ° R
• Incline setting - 47 ° L / 46 ° R

Part no. 0601B22541 (110V version) 0601B22542 (240V version)

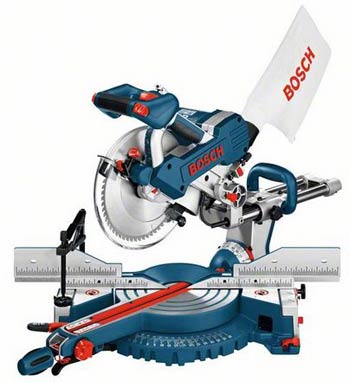

The universal and handy tool
• Incline setting on both sides (up to 47° on the right, up to 46° on the left)
• Easy and convenient angle settings on the front of the machine
• Handle can be locked conveniently in 4 positions
• Integrated, tool-free adjustable table extensions for long workpieces
• Powerful 1800 W motor for the hardest of jobs
• Large cutting capacity, up to 85 mm x 305 mm
• Mitre angles up to 60° on the right are possible
• Two carrying handles for convenient transport
• Spindle lock for convenient changing of saw blades

COMPLETE WITH
• Dust bag with adapter - 2 605 411 212
• Insert plate - 2 607 960 021
• Quick-action clamp - 2 608 040 205
• Saw blade 254 x 30 mm - 2 608 640 436

TECHNICAL DATA
• Cutting capacity, 0° - 85 x 305 mm
• Cutting capacity, 45° mitre - 85 x 216 mm
• Cutting capacity, 45° incline - 50 x 305 mm
• Mitre setting - 52 ° L / 60 ° R
• Incline setting - 47 ° L / 46 ° R
• Depth x length x height - 86 x 64 x 69 cm
• No-load speed - 5.000 rpm
• Saw blade diameter - 254 mm
• Saw blade bore - 30 mm
• Weight - 27,0 kg
• Rated power input - 1.800 W
• Linked products - System accessories-AC categories - 172481

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
The A-rated noise level of the power tool is typically as follows: Sound pressure level 94,7 dB(A); Sound power level 107,7 dB(A). Uncertainty K= 3 dB.


PLEASE STIPULATE ON ORDER IF YOU REQUIRE 240V OR 110V MACHINE
