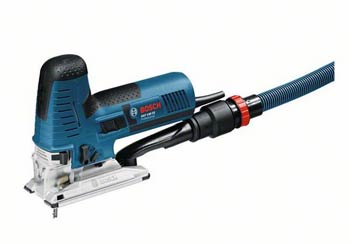

Bosch developed the first jigsaw – and has since reinvented it over and over again. Regardless of whether you need a tool for precise sawing at accurate angles or for robust use: Bosch offers professionals the right jigsaw for every application.

IMPORTANT DATA
• Rated power input - 720 W
• Cutting depth in wood - 140 mm
• Cutting depth in aluminium - 20 mm

Part no. 0601514070 (240V only)

The new standard in precision
• High-precision saw blade guidance due to double roller reduces saw blade bending – for excellent cut precision
• Tool-free, secure-fitting saw blade changing system (SDS) prevents the saw blade from wobbling to ensure maximum surface quality
• Compact, lightweight design with small grip circumference enables optimum control when sawing
• Very low vibration due to mass balance system for top-class running smoothness
• High-performance LED ensures particularly bright illumination of the cutting area
• Powerful 720-watt motor with Constant Electronic offers power reserves for deep cuts even in the hardest materials
• Systematic precision: compatible with new guide rail and our “Extra-Clean for Wood” saw blades for tear-free cuts
• Robust magnesium base plate with tool-free adjustment

COMPLETE WITH
• 1 saw blade T 244 D (ET no. 2 609 991 423)
• 1 saw blade T 308 B (ET no. 2 609 991 830)
• 2 saw blades T 144 DP (ET no. 2 609 991 424)
• Anti-splinter guard - 2 601 016 096
• Dust extraction set (ET no. 2 605 510 301)
• L-BOXX 136 - 2 608 438 692
• L-BOXX tool inlay - 2 608 438 042

TECHNICAL DATA
• Rated power input - 720 W
• No-load stroke rate - 800 – 2.800 spm
• Weight - 2,2 kg
• Saw, stroke length - 26 mm
• Cutting depth in wood - 140 mm
• Cutting depth in aluminium - 20 mm
• Cutting depth in non-alloyed steel - 10 mm

FUNCTIONS
• Pendulum stroke adjustment
• Dust extraction
• Bosch SDS System
• Electronic
• Constant Electronic

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
Sawing wood
• Vibration emission value ah - 6.0 m/s²
• Uncertainty K - 1.5 m/s²
The A-rated noise level of the power tool is typically as follows: Sound pressure level 82 dB(A); Sound power level 93 dB(A). Uncertainty K= 3 dB.


PLEASE STIPULATE ON ORDER IF YOU REQUIRE 240V OR 110V MACHINE
