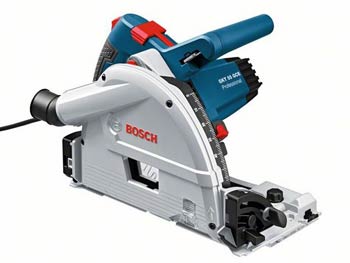

The plunge saw from Bosch delivers precision and power for exceptionally clean straight cuts. Precise adjustments, high-quality machine components and a powerful motor make the Bosch plunge saw a reliable partner for work on the jobsite or in the workshop. Optimised for use with the FSN Professional guide rail system, the plunge saw enables precise cutting of wood-based materials and solid wood, and also composite materials, aluminium and acrylic glass.

IMPORTANT DATA
• Rated power input - 1.400 W
• Saw blade diameter - 165 mm
• Cutting depth (90°) - 57 mm

Part no. 0601675061 (110V version) 0601675071 (240V version)

Precision and power for a clean cut
• Clean, precise cuts due to high-quality machine components, precision saw blade and matching guide rail system
• Comfortable work, especially indoors, due to highly efficient dust extraction and noise-reduced saw blade
• Adjustable speed, powerful 1400 watt motor and Constant Electronic for cutting different materials such as wood, panel materials, aluminium and acrylic glass
• Exact setting of cutting angle and depth for precise work results

COMPLETE WITH
• L-BOXX 374 - 2 608 438 694

TECHNICAL DATA
• Rated power input - 1.400 W
• No-load speed - 3.600 – 6.250 rpm
• Weight - 4,7 kg
• Saw blade bore diameter - 20,0 mm
• Saw blade diameter - 165 mm
• Length - 310 mm
• Height - 240 mm
• Cutting depth (90°) - 57 mm
• Cutting depth (45°) - 42 mm

FUNCTIONS
• Spindle lock
• Electronic
• Constant Electronic
• Dust extraction
• Overload protection
• Smooth start
• Compatible with guide rail

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
Vibration emission value ah - 2.5 m/sē
Uncertainty K - 1.5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 92 dB(A); Sound power level 103 dB(A). Uncertainty K= 3 dB.


PLEASE STIPULATE ON ORDER IF YOU REQUIRE 240V OR 110V MACHINE
