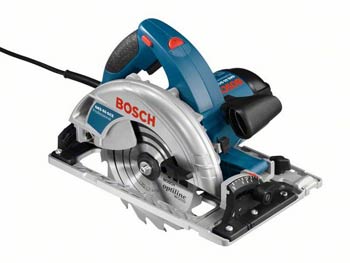

The powerful motor in a hand-held circular saw from Bosch can even take on the most demanding jobs in everyday construction site work. A Professional circular saw is a robust and durable tool that ensures fast work progress.

IMPORTANT DATA
• Rated power input - 1.800 W
• Saw blade diameter - 190 mm
• Cutting depth (90°) - 65 mm

Part no. 0601668971 (240V only)

The high-power tool – optimised for guide rails
• Exact interplay with the new Bosch FSN guide rail system and with rails from other suppliers
• Mitre cuts with the guide rail are possible without an adapter
• Fast sawing progress due to 1800 watts of motor power and Constant Electronic
• Die-cast aluminium base plate with precision milled grooves for the guide rails

COMPLETE WITH
• Allen key WAF 5 (ET no. 1 907 950 006)
• Dust extraction adapter (ET no. 2 610 925 244)
• L-BOXX 238 - 2 608 438 693
• TC saw blade, 190 mm diameter - 2 608 641 184

TECHNICAL DATA
• Rated power input - 1.800 W
• No-load speed - 2.300 – 5.000 rpm
• Weight - 5,2 kg
• Saw blade bore diameter - 30,0 mm
• Saw blade diameter - 190 mm
• Cutting depth (90°) - 65 mm
• Cutting depth (45°) - 48 mm

FUNCTIONS
• Spindle lock
• Electronic
• Constant Electronic
• Dust extraction
• Smooth start
• Compatible with guide rail

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
Vibration emission value ah - 3.0 m/sē
Uncertainty K - 1.5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 88 dB(A); Sound power level 99 dB(A). Uncertainty K= 3 dB.
