The mitre saws from Bosch are always the right choice thanks to their high precision: they saw wide panels and filigree picture frames alike at exactly the desired angle. The integrated slide function increases the possible cutting capacity, therefore providing a more versatile range of applications.

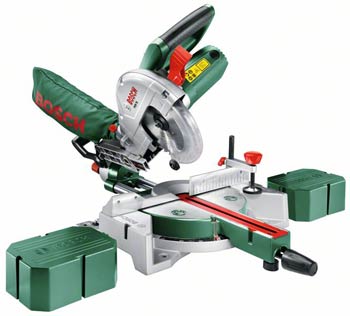

The PCM 7 S Mitre Saw with slide function is compact and lightweight for comfortable and precise working wherever you want. Compact design, low weight and practical handle for easy transport to the jobsite. Integrated slide mechanism enables highly precise cutting up to 40 mm high and 220 mm wide. Maximum precision thanks to powerful 1200 watt motor, laser and high quality saw blade.

Part no. 0 603 B01 370

• Flexible side extensions for comfortable sawing of long workpieces
• Robust thanks to solid aluminium construction
• Work clamp for safe fixing of the workpiece
• Including dust bag or connection for dust extraction to ensure clean working
• Depth stop for sawing slots
• Spindle lock for easy saw blade changes

COMPLETE WITH
• Work clamp
• 2 x 1.5 V LR03 (AAA) batteries
• Allen key
• Saw blade (2 609 256 821)
• Saw table extension (2 x)
• Dust bag

TECHNICAL DATA
• Power input 1.200 W
• No-load speed 4.800 rpm
• Circular saw blade nominal diameter 190 mm
• Circular saw blade bore diameter 30 mm
• Cutting capacity at 90°/90° 40 x 220 mm
• Cutting capacity at 45°/90° 40 x 150 mm
• Mitre adjustment 47 ° L / 53 ° R
• Incline setting 45 ° L
• Depth x length x height 57 x 77 x 41 cm
• Machine weight 11,8 kg

FUNCTIONS
• Softgrip
• Laser as a sawing aid
• Table extension
• Pull/slide function

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
• Vibration emission value ah 2,5 m/sē
• Uncertainty K 1,5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 94 dB(A); Sound power level 107 dB(A). Uncertainty K= 3 dB.
