The mitre saws from Bosch are always the right choice thanks to their high precision: they saw wide panels and filigree picture frames alike at exactly the desired angle. The integrated slide function increases the possible cutting capacity, therefore providing a more versatile range of applications.

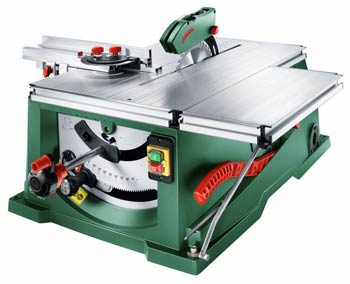

The PPS 7 S is the perfect combination of table saw and sliding mitre saw. The 2-in-1 function enables high precision rip, cross and mitre cuts. As a table saw it is ideal for sawing boards to size. As a sliding saw it is ideal for performing series of cuts in panels. Flexible and precise – universal guide fence for exact angle settings from +90° to -90°, mountable on all sides. The PPS 7 S makes precise sawing easy thanks to its integrated laser function.

Part no. 0 603 B03 370

• Large and robust saw table made of aluminium
• Flexible table extension for comfortable and precise sawing of long and wide workpieces
• Dust extraction mechanism is close to the saw blade, ensuring a tidy work area and little need for cleaning. Additional possibility to connect a vacuum cleaner
• Powerful 1400-watt motor
• Softstart for smooth motor startup and Constant Electronic for material-specific work

COMPLETE WITH
• 12 x 1.5 V LR03 (AAA) batteries
• “Laser unit” fixing set
• “Table extension” fixing set
• Floor plate
• Allen key
• Laser unit
• Push stick
• Protective guard with fixing set
• Table extension with support
• Universal guide fence with fixing knob
• Pull-push saw with pre-assembled saw blade

TECHNICAL DATA
• Power input 1.400 W
• No-load speed 4.800 rpm
• Circular saw blade rated diameter 190 mm
• Circular saw blade bore size 30 mm
• Max. cutting height at 0° 62 mm
• Max. cutting height at 45° 36 mm
• Max. cutting width (slide function) 212 mm
• Mitre angle, horizontal +90° to -90°
• Mitre angle, vertical-1.5° to +46.5°
• Machine weight 23,2 kg

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
The A-rated noise level of the power tool is typically as follows: Sound pressure level 97 dB(A); Sound power level 110 dB(A). Uncertainty K= 3 dB.
