The impact drills from Bosch prove their worth with high-power performance and state-of-the-art technology. Their ergonomic slimline design makes the versatile Bosch Impact Drills both convenient and safe to handle for a full range of applications: impact drilling, standard drilling as well as screwdriving.

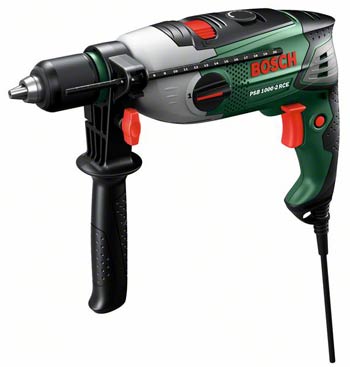

The Expert Impact Drill PSB 1000-2 RCE from Bosch – Power to the max. For do-it-yourselfers with the highest demands, the extremely powerful 1000 W motor together with the 2-speed gearbox and simultaneously ergonomic design with softgrip leaves nothing to be desired. Equipped with an extremely robust, insulated aluminium housing. With Bosch Constant Electronic the speed is automatically kept constant, even under load.

Part no. 0 603 173 570

• Bosch Electronic: speed preselection and control using setting wheel and trigger switch – for material-specific working and fingertip control of the power, e.g. when starting to drill in smooth surfaces and when driving screws
• With 2-speed gearbox that provides high torque in 1st gear and high speed in 2nd gear
• Single-sleeve keyless chuck with Bosch Auto-Lock for the fastest and easiest tool changes
• Robust metal drill chuck with tungsten carbide jaws
• Outstanding handling ensures perfect control and optimum user comfort
• Forward/reverse operation
• Convenient working due to integrated switch for continuous operation
• Dust extraction port – dust extraction available as an optional accessory
• Screwdriving/Drilling/Impact drilling function switch for material-specific working
• 4 m cable with new cable guide with hanging hook for practical storage

COMPLETE WITH
• Auxiliary handle (2 609 255 728)

TECHNICAL DATA
• Voltage 230 V
• Power input 1.000 W
• Power output 530 W
• Max. torque (1st gear / 2nd gear) 60,0 / 18,0 Nm
• Idle speed (1st gear/2nd gear) 50 – 1.100 / 2.800 rpm
• Impact rate 47.600 bpm
• Machine weight 2,8 kg
• Max. drilling diameter in concrete (1st gear / 2nd gear) 20 / 13 mm
• Max. drilling diameter in steel (1st gear / 2nd gear) 16 / 8 mm
• Max. drilling diameter in wood (1st gear / 2nd gear) 40 / 25 mm
• Screw diameter max. 12 mm

FUNCTIONS
• Keyless chuck
• 2-speed gearbox
• Bosch Auto-Lock
• Speed preselection
• Bosch Constant Electronic
• 4 m cable
• Forward/reverse rotation
• Bosch Electronic
• Softgrip
• Application: screwdriving / drilling / impact drilling
NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745.
Total vibration values (vector sum of three directions)
Drilling in metal
• Vibration emission value ah 6,0 m/sē
• Uncertainty K 1,5 m/sē
Impact drilling in concrete
• Vibration emission value ah 26,0 m/sē
• Uncertainty K 2,5 m/sē
Screwdriving
• Vibration emission value ah 2,5 m/sē
• Uncertainty K 1,5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 100 dB(A); Sound power level 111 dB(A). Uncertainty K= 3 dB.
