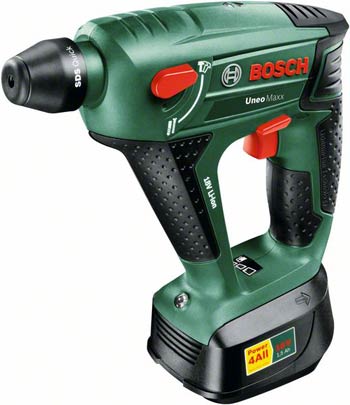

The powerful 3-in-1 multi-talented tool for hammering, drilling and screwdriving.

Hammering in concrete and masonry, drilling and screwdriving with pneumatic Bosch hammer mechanism with impact force of 0.6 joules. Comfortable working due to particularly handy size and a low working weight of 1.4 kg. No memory effect, no self-discharge: always ready for use thanks to lithium-ion technology.

Part no. 0 603 952 370

• Powerful lithium-ion battery and 1-hour charger, which can be used for all tools in the Bosch 18 V lithium system
• Bosch SDS-Quick toolholder – fast and tool-free bit changing and optimum power transfer
• Additional hexagonal toolholder
• Impact stop for drilling in metal and wood, and for screwdriving
• Bosch Electronic speed control: “accelerate” from 0 – max. using the trigger switch
• Particularly long life of the replaceable lithium-ion battery packs due to Bosch Electronic Cell Protection (ECP)

COMPLETE WITH
• 1-hour charger (1 600 Z00 002)
• Battery pack (1 600 Z00 000)
• Concrete drill bit, 6 and 8 mm diameter
• Universal drill bit, 5 and 6 mm diameter
• 4 long bits
• Plastic carrying case
TECHNICAL DATA
• Battery voltage 18,0 V
• Battery capacity 1,5 Ah
• Max. drill diameter in concrete 10 mm
• Max. drill diameter in steel 8 mm
• Max. drill diameter in wood 10 mm
• Max. number of drilling holes per battery charge (concrete) 50
• Max. number of drilling holes per battery charge (softwood) 120
• Max. number of screws per battery charge 130
• No-load speed 0 – 900 rpm
• Impact rate 0 – 5.000 rpm
• Single impact force 0,6 J
• Bosch Hammer Mechanism - pneumatic
• Machine weight 1,4 kg

FUNCTIONS
• 18 Volt
• Lithium-ion technology
• Pneumatic hammer mechanism
• Bosch Electronic Cell Protection (ECP)
• SDS-Quick drill bit holder
• Integrated work light
• Softgrip
• Bosch Electronic

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745.
Total vibration values (vector sum of three directions)
Drilling in metal
• Vibration emission value ah 4,0 m/s²
• Uncertainty K 1,5 m/s²
Screwdriving
• Vibration emission value ah 14,3 m/s²
• Uncertainty K 1,5 m/s²
The A-rated noise level of the power tool is typically as follows: Sound pressure level 85 dB(A); Sound power level 96 dB(A). Uncertainty K= 3 dB.
