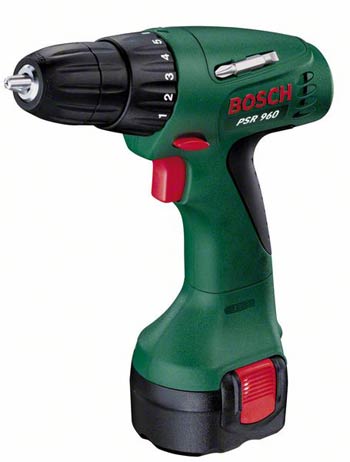

Compact and powerful for all screwdriving work – with drill setting

Powerful 9.6 V motor with planetary gears. Torque preselection with 5 torque settings plus a drill setting – optimum power for every application. Twin-sleeve keyless chuck – easy, tool-free bit changes.

Part no. 0 603 944 667

• Bosch Electronic speed control: “accelerate” from 0 – max. using the trigger switch
• Softgrip for a better and more comfortable hold
• Run-out brake and lock-off switch
• Quick-change battery pack
• Bit storage on the housing
•
COMPLETE WITH
• Charger
• Battery pack
• Plastic case (2 605 438 621)

TECHNICAL DATA
• No-load speed 0 – 550 rpm
• Max. torque 12,0 Nm
• Torque settings 5 + 1
• Battery voltage 9,6 V
• Keyless chuck
• Machine weight with battery 1,30 kg
• Screw diameter up to 6 mm
• Drill diameter in steel 8 mm
• Drill diameter in wood 14 mm

FUNCTIONS
• 9.6 Volt
• Application: screwdriving / drilling
• Softgrip
• Bosch Electronic
• Forward/reverse rotation

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745.
Total vibration values (vector sum of three directions)
Drilling in metal
• Vibration emission value ah 2,5 m/s²
• Uncertainty K 1,5 m/s²
Screwdriving
• Vibration emission value ah 2,5 m/s²
• Uncertainty K 1,5 m/s²
The A-rated noise level of the power tool is typically as follows: Sound pressure level 70 dB(A); Sound power level 80 dB(A). Uncertainty K= 3 dB.
