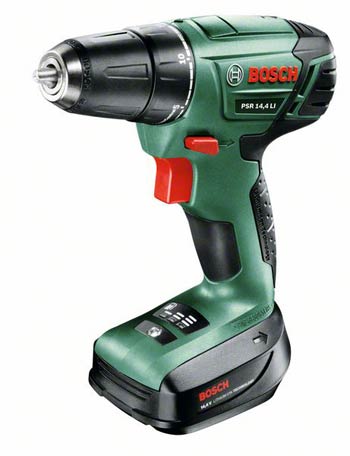

The most handy and convenient tool in its class with high power thanks to lithium-ion technology. No memory effect, no self-discharge: always ready for use thanks to lithium-ion technology. Particularly long life of the replaceable lithium-ion battery packs due to Bosch Electronic Cell Protection (ECP)

Part no. 0 603 954 370
• Intelligent 3-stage charge level indicator
• Bosch Electronic for speed control: “accelerate” from 0 – max. using the trigger switch
• High-performance planetary gearbox: superior lifetime, best power transfer, high running smoothness
• Keyless chuck with Bosch Auto-Lock for the fastest and easiest bit changes
• PowerLight – your workpiece is always well lit and clearly visible thanks to the built-in LED
• 20 pre-selectable torque settings plus a drill setting – optimum power for every application
COMPLETE WITH
• 3-hour lithium-ion charging station (2 607 225 274)
• Battery pack (2 607 336 038)
• Double ended screwdriver bit
• Plastic carrying case

TECHNICAL DATA
• No-load speed 0 – 400 rpm
• Max. torque 28,0 Nm
• Max. torque for soft/hard screwdriving applications 12 / 28 Nm
• Torque settings 20 + 1
• Battery voltage 14,4 V
• Keyless chuck
• Machine weight with battery 1,10 kg
• Screw diameter up to 8 mm
• Drill diameter in steel 8 mm
• Drill diameter in wood 25 mm

FUNCTIONS
• 14.4 Volt
• Lithium-ion technology
• Bosch Electronic Cell Protection (ECP)
• Bosch Auto-Lock
• Application: screwdriving / drilling
• Softgrip
• Integrated work light
• Bosch Electronic
• Forward/reverse rotation
• Charge level indicator
• Forward/reverse indicator

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745.
Total vibration values (vector sum of three directions)
Screwdriving
• Vibration emission value ah 2,5 m/s²
• Uncertainty K 1,5 m/s²
The A-rated noise level of the power tool is typically as follows: Sound pressure level 67 dB(A); Sound power level 78 dB(A). Uncertainty K= 3 dB.
