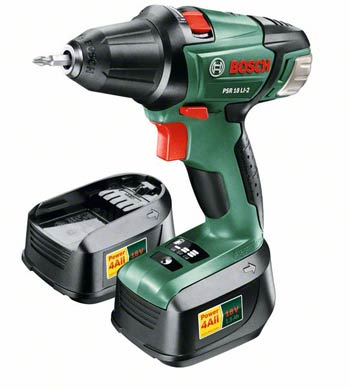

The most handy and convenient tool in its class thanks to lithium-ion technology. Innovative, electronic “Bosch Power Control” torque pre-selection with integrated gear change – optimum power for every application. 2-speed high-performance planetary gearbox: superior lifetime, best power transfer, high running smoothness.

Part no. 0 603 973 371

• No memory effect, no self-discharge: always ready for use thanks to lithium-ion technology
• Bosch Electronic speed control: “accelerate” from 0 – max. using the trigger switch
• Particularly long life of the changeable lithium-ion battery pack due to Bosch Electronic Cell Protection (ECP)
• Keyless chuck with Bosch Auto-Lock for the fastest and easiest bit changes
• PowerLight – your workpiece is always well lit and clearly visible thanks to the built-in LED
• Intelligent 3-stage charge level indicator

COMPLETE WITH
• 2 battery packs (1 600 Z00 000)
• Double ended screwdriver bit
• Plastic carrying case
• 1-hour charger (1 600 Z00 002)

TECHNICAL DATA
• Idle speed (1st gear/2nd gear) 0 – 400 / 1.340 rpm
• Max. torque 46,0 Nm
• Max. torque for soft/hard screwdriving applications 25 / 46 Nm
• Torque settings - 10
• Battery voltage 18,0 V
• Chucks - 10-mm keyless chuck
• Machine weight with battery 1,30 kg
• Screw diameter up to 10 mm
• Drill diameter in steel 10 mm
• Drill diameter in wood 35 mm

FUNCTIONS
• 18 Volt
• Lithium-ion technology
• Bosch Electronic Cell Protection (ECP)
• Bosch Auto-Lock
• 2-speed gearbox
• Application: screwdriving / drilling
• Softgrip
• Integrated work light
• Bosch Electronic
• Forward/reverse rotation
• Charge level indicator
• Forward/reverse indicator

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745.
Total vibration values (vector sum of three directions)
Drilling in metal
• Vibration emission value ah 2,5 m/s²
• Uncertainty K 1,5 m/s²
Screwdriving
• Vibration emission value ah 2,5 m/s²
• Uncertainty K1,5 m/s²
The A-rated noise level of the power tool is typically as follows: Sound pressure level 76 dB(A); Sound power level 87 dB(A). Uncertainty K= 3 dB.
