Sawing, cutting, routing, sanding.... The multi-function tools from Bosch offer countless possibilities for putting your ideas into practice.

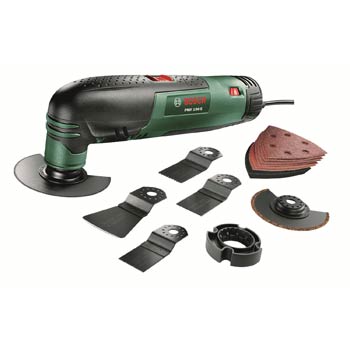

The versatile all-rounder PMF 190 E – sawing, cutting, sanding and scraping even in hard-to-reach areas

IMPORTANT DATA
• Power input - 190 W
• No-load speed - 15.000 – 21.000 rpm
• Oscillation angle left/right - 1,4 °

Part no. 0603100571

• Bosch Electronic with continuously variable preselection of the oscillation rate – for material-specific work
• Oscillation: 15,000 – 21,000 oscillations per minute at 2.8 angular degrees
• With 4-stage depth stop – for limiting the depth of cut
• Possibility to connect an all-purpose vacuum cleaner – for dust-free sanding
• Ergonomic design – compact and easy-to-handle tool with small grip circumference

COMPLETE WITH
• BIM plunge-cutting saw blade for hardwood, 32 x 40 mm, AIZ 32 BB (2 609 256 946)
• BIM plunge-cutting saw blade for metal, 32 x 30 mm, AIZ 32 AB (2 609 256 971)
• BIM segment saw blade for wood and metal, 85 mm, ACZ 85 EB (2 609 256 943)
• Delta sanding sheet set, wood, 93 mm (2 609 256 070)
• Delta sanding plate 93 mm, AVI 93 G (2 609 256 956)
• HCS flexible scraper, 52 x 45 mm, ATZ 52 SFC (2 609 256 955)
• HCS plunge-cutting saw blade for wood, 32 x 40 mm, AIZ 32 EC (2 609 256 947)
• HM-RIFF segment saw blade, 85 mm, ACZ 85 RT (2 609 256 952)
• Allen key
• Plastic carrying case
• 4-stage depth stop for segment saw blades (2 609 256 C61

TECHNICAL DATA
• Voltage - 230 V
• Power input - 190 W
• Power output - 89 W
• No-load speed - 15.000 – 21.000 rpm
• Oscillation angle left/right - 1,4 °
• Weight - 1,2 kg

FUNCTIONS
• Oscillation angle
• Bosch Electronic
• Softgrip

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
Sanding
• Vibration emission value ah - 3,5 m/sē
• Uncertainty K - 1,5 m/sē
Sawing with plunge-cutting saw blade
• Vibration emission value ah - 12,5 m/sē
• Uncertainty K - 1,5 m/sē
Sawing with segment saw blade
• Vibration emission value ah - 14,0 m/sē
• Uncertainty K - 2,5 m/sē
Scraping
• Vibration emission value ah - 12,0 m/sē
• Uncertainty K - 1,5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 86 dB(A); Sound power level 97 dB(A). Uncertainty K= 3 dB.
